CDAX-6100-S
The Packless CDAX-6100-S heat exchanger is designed as a condenser for use in potable water applications in 1 ton systems. Packless double-wall condensers provide efficient heat transfer while minimizing fouling.
← View all Double-Wall Condensers
Specifications
| Model | CDAX-6100-S |
|---|---|
| Capacity | 1 ton |
| Overall Length | 16 3⁄8 in |
| Overall Width | 2 3⁄8 in |
| Overall Height | 13 1⁄8 in |

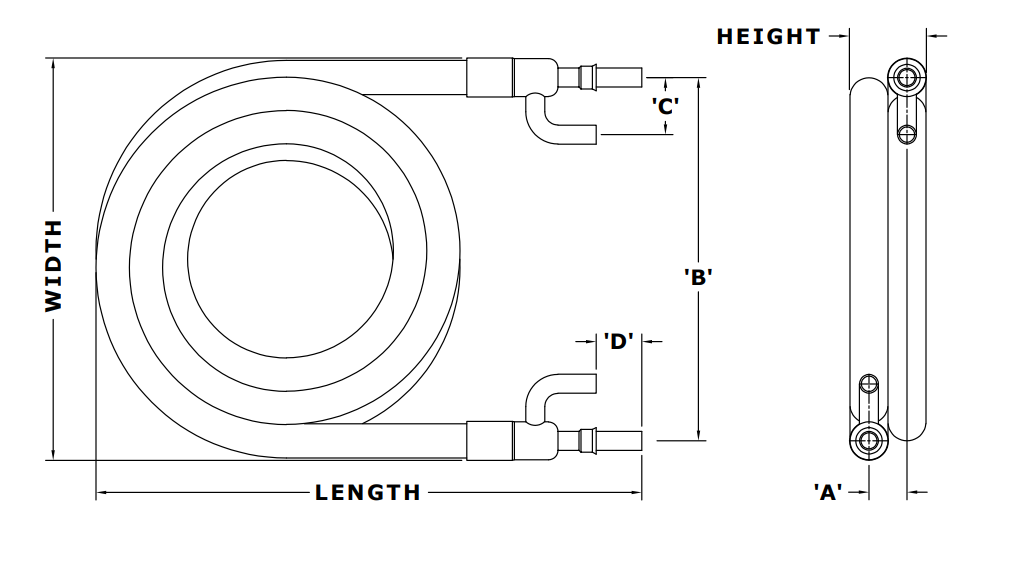

| Dimension A (See Drawing) | 1 1⁄8 in |
| Dimension B (See Drawing) | 11 15⁄16 in |
| Dimension C (See Drawing) | 2 in |
| Dimension D (See Drawing) | 1 1⁄2 in |
| Refrigerant Inlet Connection | 3⁄8 in (ID) |
| Refrigerant Outlet Connection | 3⁄8 in (ID) |
| Water Inlet Connection | 5⁄8 in (OD) |
| Water Outlet Connection | 5⁄8 in (OD) |
| Maximum Refrigerant Working Pressure |
650 psig |
| Maximum Water Working Pressure |
500 psig |
